Digital Sensors
Usually, digital sensors have two states: on/off, activated/deactivated, and so on. For example, it can be an ignition or cargo load sensor. All sensors are configured in the unit properties.
To receive the information about a specific sensor, specify its name or part of the name using wildcard symbols — an asterisk * (replaces several characters) or question mark ? (replaces one symbol). The sensor name cannot contain commas. If the sensor mask is not specified, the information in the table is displayed for all sensors of the unit.

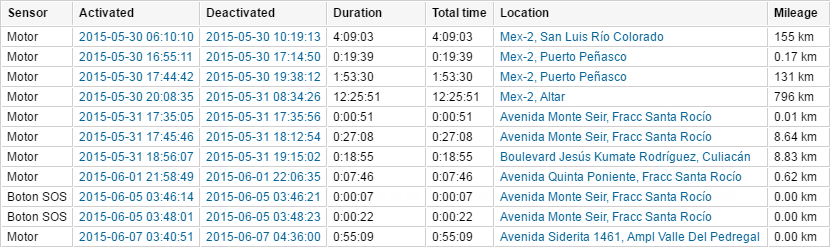

The table can contain the following columns.
| Column | Description |
|---|---|
| Sensor | The name of the controlled sensor. |
| Activated | The time from the first message that contains information about the activation of the sensor. |
| Deactivated | The time when the sensor was deactivated. |
| Duration | The interval when the sensor was on. |
| Total time | The time from the beginning of the first activation to the end of the last one. |
| Location | The location of the unit at the moment the sensor was activated. |
| Final location | The location of the unit at the moment the sensor was deactivated. |
| Mileage | The distance travelled while the sensor was on. |
| Mileage (adjusted) | Mileage subject to the coefficient set in the unit properties (the Advanced tab). |
| Initial mileage | The mileage sensor value at the time the digital sensor is turned on. If the mileage parameter was not saved at the reporting interval, the mileage is counted from zero. |
| Final mileage | The mileage sensor value at the time the digital sensor is turned off. |
| Avg speed | The average speed of movement with the sensor on. |
| Max speed | The maximum speed with which the unit moved with the sensor turned on. |
| Activations count | The number of activations (can be helpful either in grouping table data by years/months/weeks/days/shifts or for the reports on unit groups). |
| Driver | The name of the driver (if assigned). |
| Trailer | The name of the trailer (if assigned). |
| Penalties | The penalties calculated for the adjusted Eco driving criteria. |
| Rank | The penalty points converted to the 6-point rating system. |
| Avg value of custom sensor | The average value of a custom sensor from the moment of a digital sensor's activation to its deactivation. |
| Min value of custom sensor | The minimum value of a custom sensor from the moment of a digital sensor's activation to its deactivation. |
| Max value of custom sensor | The maximum value of a custom sensor from the moment of a digital sensor's activation to its deactivation. |
| Initial value of custom sensor | The custom sensor value at the moment of a digital sensor's activation. |
| Final value of custom sensor | The custom sensor value at the moment of a digital sensor's deactivation. |
| Notes | An empty column for your custom comments. |
If there are several custom sensors, separate columns with average, minimum, maximum, initial and final values are displayed for each of them. The name of each custom sensor and units of measurement (if they were specified when creating the sensor) are indicated next to the name of each of these columns within the parentheses. In case there are no suitable sensors, the columns are not displayed.
Interval filtration can be applied to this table: by duration, mileage, engine hours sensor, engine hours, speed range, trips, stops, parkings, sensors masks, driver, trailer, fuel fillings, fuel thefts, and geofences/units.
