Geofences

To run a report with the Geofences table, you should have the View geofences access right to the resource to which the geofences belong and to the resource in which the report template has been created.

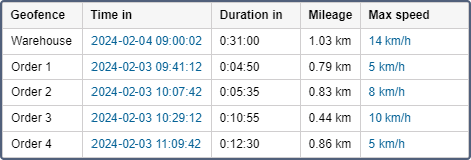

The Geofences table contains information about geofences visited by a unit.

When adding this table to a report, you must select one or more geofences in the table settings. You can use both the geofences from the resource in which the report template is created and the geofences from other resources to which the user has the View geofences access right. The resource is selected in the dropdown list above the list of geofences. You can also select the All option for the list to contain the geofences from all the resources to which the user has the necessary access right. The geofences in the list are sorted by name. To quickly find one, use the dynamic filter.

The Geofences table can include the columns described below.

Column Description
Geofence The name of the geofence.
Type Polygon, line, circle, unit (if units are selected instead of geofences in the report template).
Area The total area of the geofence (if the metric system is used, the area will be indicated in hectares).
Perimeter The perimeter of the geofence. The perimeter for a line is its length (line thickness is not taken into account).
Description The description of the geofence (taken from the geofence properties).
Time in The time when the unit entered the geofence.
Time out The time when the unit left the geofence.
Duration in The duration of the visit.
Total time The time from the beginning to the end of visit. It is recommended to use this column in combination with the grouping parameter or the Total row. If the Total row is configured in the table, it shows all the time that elapsed from the beginning of the first visit to the end of the last one.
Parkings duration The time spent in parkings.
Off-time The time between leaving and entering one and the same geofence. It is determined if the unit visited the geofence at least two times.
Mileage The mileage inside the zone.
Mileage (adjusted) The mileage subject to the coefficient set in the unit properties (on the Advanced tab).
Initial mileage The value of the mileage sensor when the unit entered the geofence.
Final mileage The value of the mileage sensor when the unit left the geofence.
Initial engine hours The value of the sensor of absolute engine hours when the unit entered the geofence.
Final engine hours The value of the sensor of absolute engine hours when the unit left the geofence.
Counter The value of the counter sensor.
Initial counter The counter value when the unit entered the geofence.
Final counter The counter value when the unit left the geofence.
Avg. engine revs The average rate of engine revolutions.
Max. engine revs The maximum rate of engine revolutions.
Avg. temperature The average temperature value registered inside the geofence.
Min. temperature The minimum temperature value registered inside the geofence.
Max. temperature The maximum temperature value registered inside the geofence.
Initial temperature The temperature value when entering the geofence.
Final temperature The temperature value when leaving the geofence.
Off-mileage The mileage traveled from leaving to entering one and the same geofence.
Off-mileage (adjusted) The mileage traveled from leaving to entering one and the same geofence considering the coefficient.
Avg. speed The average speed with which the unit moved in the geofence.
Max. speed The maximum speed with which the unit moved in the geofence.
Driver The name of the driver (if available).
Trailer The name of the trailer (if it was assigned).
Visits The number of visits (can be helpful either in grouping table data by years/months/weeks/days/shifts or for the reports on unit groups).
Fuel consumed The amount of consumed fuel detected by any sort of fuel sensor. If several sensors are available, their values sum up.
Consumed by ImpFCS/AbsFCS/InsFCS/FLS/math/math for FLS/rates The volume of consumed fuel detected by a fuel sensor (such as impulse/absolute/instant fuel consumption sensor, fuel level sensor) or calculated by math or rates. More details about fuel in reports can be found here.
Energy consumed The amount of battery energy in kWh consumed while the unit was inside the geofence. It is calculated using the readings of the battery level sensor.
Avg. fuel consumption The average fuel consumption by any sort of fuel sensor. If several sensors are available, their values sum up.
Avg. consumption by ImpFCS/AbsFCS/InsFCS/FLS/math/math for FLS/rates The average fuel consumption by one of the methods mentioned above.
Avg. energy consumption The average battery consumption in kWh per 100 km or mi while the unit was inside the geofence. It is calculated using the readings of the battery level sensor.
Penalties The penalties calculated for the adjusted Eco driving criteria. Penalty averaging for grouping rows (group headings) can be adjusted in report settings.
Rank The penalty points converted to a 10-point rating system.
Avg. value of custom sensor The average value of the custom sensor registered inside the geofence.
Min. value of custom sensor The minimum value of the custom sensor registered inside the geofence.
Max. value of custom sensor The maximum value of the custom sensor registered inside the geofence.
Initial value of custom sensor The value of the custom sensor registered when the unit entered the geofence.
Final value of custom sensor The value of the custom sensor registered when the unit left the geofence.
Notes An empty column for your custom comments.
Video Files saved inside the geofence using the Video module.
Image The images received from the unit. Viewing images in reports and the functions available while doing this are described in the article Working with tables.

Instead of geofences, you can select units in the settings of the Geofences table. You should indicate the radius for these units (in meters). In this case, the units are considered as moving geofences, and the activity of the selected unit is analyzed with respect to these moving geofences. The Request reports and messages access is required to these units.

The interval filtering by duration, mileage, engine hours, speed range, trips, stops, parkings, sensors, drivers, trailers, fuel fillings, drains, and battery charges can be applied to the Geofences table.

Geofences from this table can be displayed on the map. To do this, activate the Render geofences option in the report template.

See related reports: Non-visited geofences, Trips between geofences.

Questions and answers

Reports show incorrect mileage. What should I do?

Possible explanations and actions:

1. Outliers of data.

To detect such outliers, build a track of unit movement for the appropriate period. Outliers of data will be seen on the track as dashed lines.

Ways to overcome outliers:

  • Enable filtering of unit positional information in messages (on the Advanced tab of unit properties). This will not affect old messages but applied to new ones.
  • To correct data in reports, change settings of trip detection, in particular, reduce Maximum interval between messages and increase Minimum satellites.

2. Incorrect settings or operation of the mileage counter.

  • Check the mileage counter settings on the General tab of unit properties.
Do reports display the data on the manual assignment of the driver after the data storage period expires?

Yes, but only if the driver has not had other assignments since they were last assigned to the unit.

What is the difference between time-based and mileage-based calculation of fuel level?

1. Mileage-based calculation

In a standard situation, all calculations of fuel level are mileage-based. That means data from the FLS is taken only during intervals of movement (trips). Those trips are defined according to parameters set in the trip detector.

Drains and fillings are detected if there is a difference between the fuel level on the following movement interval (X) and the fuel level on the previous movement interval (Y). If (X — Y) > 0, it is a filling; if (X — Y) < 0, it is a drain; if X = Y, it is neither. Of course, there can be some inaccuracy in data coming from the FLS. That is why, to avoid false drains and fillings, set the following parameters in the FLS properties:

  • minimum fuel filling volume,
  • minimum fuel drain volume,
  • minimum stop duration to detect a fuel drain,
  • and some others.

2. Time-based calculation

This type of calculation is more complicated and is based on the following algorithm: the speed of the decrease of fuel level according to the FLS is compared with the consumption calculated mathematically. The time-based calculation is necessary for stationary units. It is also widely used for moving units for controlling drains during the movement, for example.

Example

A vehicle stayed at a parking lot during 10 hours. Defueling was made in small portions over the whole parking period. As a result, 60 liters of fuel were drained. It is possible to determine if it was a drain o fuel consumption according to the state of the unit’s ignition sensor. ​

Why doesn't consumption by math work?

Since the consumption math mechanism is based on the values of the ignition sensor, check its properties and operation. You may not have this sensor created or there may be 0 l/h indicated for the fuel consumption in its properties.

How to configure consumption by math if the unit doesn't have ignition?

You may use one of the approaches described below.

Variant 1

Create a virtual ignition sensor. We recommend that you use average speed (speed+#speed)/const2 as its parameter.

Variant 2

Even if you haven’t installed an ignition sensor in the unit or are not sure of the name of the parameter that responds for the ignition, in the parameters of the device there may be some characteristic that corresponds to the operation of the engine. To use it, compare two messages from the unit: one — when the ignition the most probably off; the other — when it’s on.

Example

During a long time interval the unit sends approximately the following set of parameters:

Copied!
hdop=1, odo=0, adc2=2.0475, adc12=1037, c1=0, c2=0, c3=0, c4=0, mcc=260, mnc=2, lac=56720, cell_id=43811, ta=1,
gsm_lvl=55, total_fuel=407154, can_fls=101, can_taho=4797, can_engine_hrs=230420, can_mileage=137603392, engine_temp=123,
srv_dist=0, j1939_air_temp=9072, J1708_eng_hrs=230420, J1708_fl_used=430282, J1708_fl_lvl=101, I/O=80/0

While moving at some speed — approximately the following:

Copied!
hdop=1, odo=847.358764648, adc2=2.3595, adc12=1117, c1=0, c2=0, c3=0, c4=0, mcc=260, mnc=2, lac=56720, cell_id=60167,
ta=1, gsm_lvl=71, total_fuel=407178, can_fls=101, can_taho=9940, can_engine_hrs=230447, can_mileage=137609550,
engine_temp=124, srv_dist=0, j1939_air_temp=9353, J1708_eng_hrs=230447, J1708_fl_used=430307, J1708_fl_lvl=101, I/O=d1/0

Straight before the start of the movement, as a rule, the ignition turns on:

Copied!
hdop=1, odo=0, adc2=1.4937, adc12=895, c1=0, c2=0, c3=0, c4=0, mcc=260, mnc=2, lac=56720, cell_id=60268, ta=2,
gsm_lvl=64, total_fuel=407166, can_fls=100, can_taho=996, can_engine_hrs=230439, can_mileage=137605711, engine_temp=120,
srv_dist=0, j1939_air_temp=9369, J1708_eng_hrs=230439, J1708_fl_used=430295, J1708_fl_lvl=100, I/O=80/0

Discard the parameters that are obviously imprecise: hdop (precision), adcN (it’s difficult to determine the regularity), odo (relative odometer in meters), mcc mnc cell_id and lac (LBS data section), gsm_lvl (the level of the GSM signal), etc. The parameter J1708_eng_hrs for this unit seems the most probable, as it doesn’t change during the night parking. As a rule, it is also possible to use pwr_ext. Is the ignition is digital, you can follow the values’ changes in the block ‘I/O =’ (see more details in the Inputs and outputs section).

Variant 3

If you have already connected the ignition, find out its parameter by means of the method described above or from the manual of the manufacturer.

Why does mathematical calculation show enormous values?

Possible reasons:

  • In some cases, the system may consider that during the interval with no messages from the unit its ignition was on. Adjust the default value ‘0 seconds’ on the Maximum interval between messages option on the Advanced tab of unit properties. The influence of the option on the fuel calculation is described in the documentation.
  • Several engine efficiency sensors can be created. Check up their values. The easiest way to evaluate it is to create in a report a simple chart with one of the curves Fuel consumption by math.
How to determine fuel consumption, if I know how much fuel the unit consumes within the city, and how much outside it?

Let us suppose that the fuel consumption in the urban cycle is 10 l/100 km and 7 l/100 km — in the suburban cycle.

  • Create an ignition sensor (as in the example above) and set 1 l/h for the consumption during idling.
  • The average consumption in the urban cycle is 36 km/h, in the suburban — 80 km/h.
  • The unit will cover a distance of 100 km driving at a speed of 36 km/h in 2.8 hours. 10 l / 2.8 = 3.57. Let us calculate the value of the increasing coefficient when moving in the city: 3.57 / 1 (idling) = 3.57.
  • As a result of a similar calculation for the suburban cycle, we obtain the coefficient equal to 5.6.

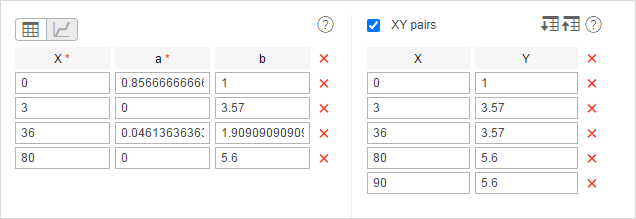

  • Create an engine efficiency sensor, taking into account the fact that the unit cannot consume less fuel than during the idling, and that it is stationary before the beginning of the movement. As a parameter we use the average speed (speed + # speed) / const2 and fill in the calculation table (manually or using the calculation table wizard):

Note that the last pair of points is how the system calculated before (the fuel consumption was considered constant for a speed above 80 km/h). You cannot use this method and change the set of points. Also ‘3’ in this example is the minimum speed from the unit’s trip detector, consequently, this parameter can be different for your unit.

Result: in our example, the average consumption has been calculated for the unit. It has been calculated relative to the speed and time between messages and taking into account the values of the vehicle operation.

How does the mathematical calculation algorithm work?

During the mathematical calculation, fuel consumption is computed separately for each pair of messages.

The following algorithm is used:

  1. The status of each engine sensor (engine ignition, absolute and relative engine hours sensors) in the current message is determined.
  2. For the operating sensors the values indicated in the field Consumed, l/h of their properties are summed.
  3. The values of the engine efficiency sensors bounded to the engine sensors are calculated.
  4. The received values are summed according to the formula k1 + (k2 - 1) + (k3 - 1) + … + (kn – 1). In that way, the coefficient is formed. If the sum of the coefficients is less than 0 or invalid, the total coefficient will be 1.
  5. To determine the current fuel consumption of the unit, the value from point 2 is multiplied by the value of point 4.
  6. The value from the previous message till the current one is multiplied by the value from point 5.
  7. The consumption for each message pair for the indicated interval is summed and in that way, the fuel consumption is determined by consumption math.
